PORTABILITY FOR SERVICE

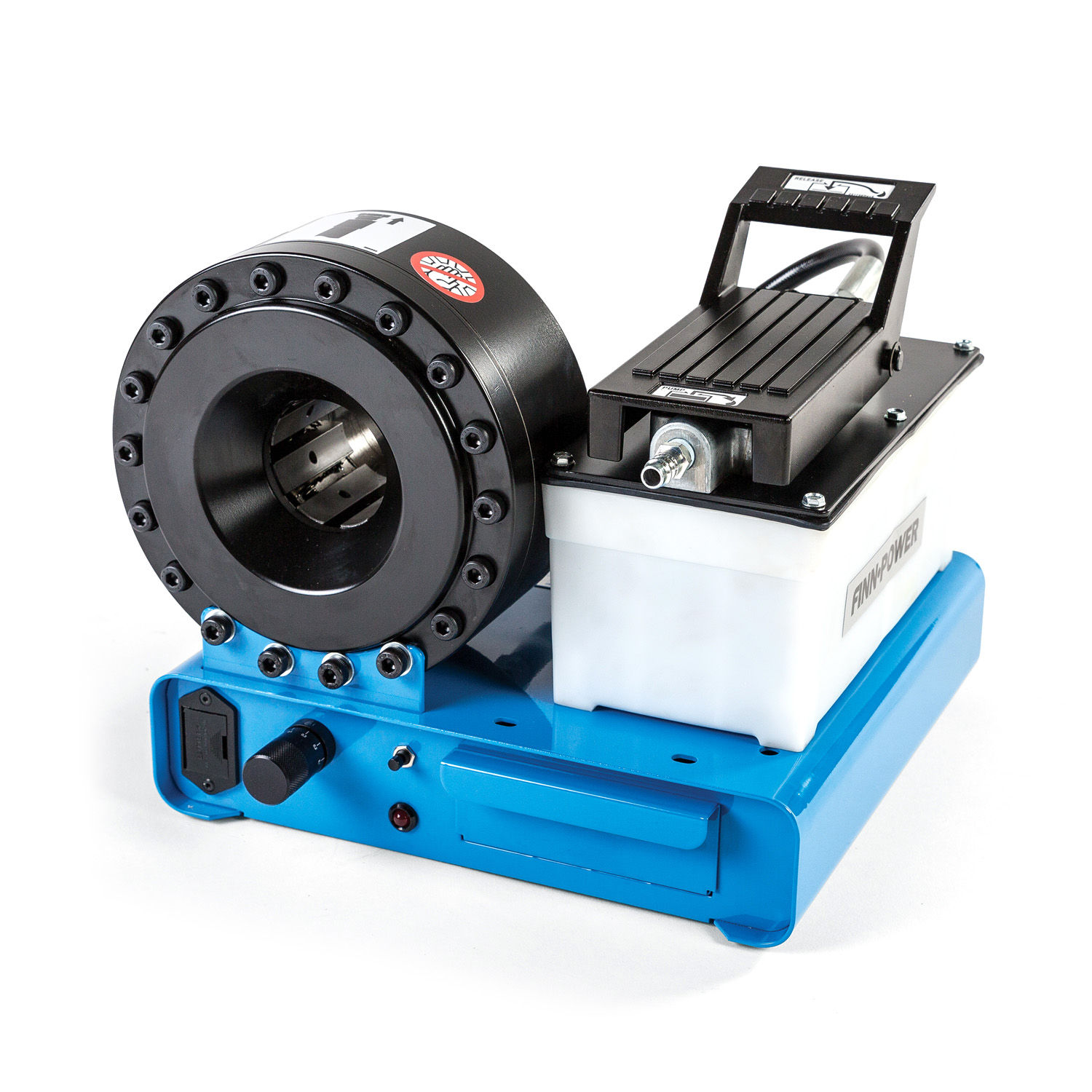

Finn-Power P16AP is air pump operated hydraulic crimping machine for repair workshops and field use. Easy to use, light and compact in size, allowing to be carried to any location.

P16AP also available in following configurations:

Z-model with separate crimping head and hydraulic unit

Available also with hand pump (HP-model) and separate head/power pack configuration (Z-model).

P16AP

Max crimping dia (1)	45mm
Max crimping force	955
Hose size ID	1" (4SH)
Die set series	16
Max opening (2)	+20mm
Max opening without dies	59mm
Master die D/L	39mm/64mm
Motor power	Hand pump
Dimensions Length Width Height	331mm 401mm 271mm
Weight	26KG

1) With standard dies. Crimping range can be increased with special dies.
2) Maximum opening is the total die travel. Add this value to the minimum crimping diameter of the die set used. The result is the maximum opening of the machine with die set in place.

Die Set No.	D (mm)	L (mm)	Crimp range (mm)
18212/10	10	55	10.0-12.0
18212/12	12	55	12.0-14.0
18212/14	14	55	14.0-16.0
18212/16	16	55	16.0-19.0
18212/19	19	55	19.0-23.0
18212/23	23	55	23.0-27.0
18212/27	27	65	27.0-31.0
18212/31	31	65	31.0-38.0

In addition to the standard die sets, a wide range of special die sets is available on request.

P16AP

TECHNICAL DATA

DIE SET 16-SERIES

TECHNICAL DATA SHEET
